Tire Changers
BD18
Tilt-Back Leverless Tire Changer
Rim Range 13–28''Powers 0.75 / 1.1 kWVoltages 220V / 380VMax. Wheel Diameter 1100 mm
Specifications
BD18 specs
Rim Range
13–28''
Rim Width
350 mm
Max. Wheel Diameter
1100 mm
Work Pressure
8–10 bar
Operation Speed
6/12 rpm (380V)
Voltages
220V / 380V
Powers
0.75 / 1.1 kW
Tire Lift Max Loading
75 kg
N./G. Weight
430 / 492 kg
Packing DIM
1380 × 1130 × 1840 mm
Machine-Space DIM
1800 × 1800 × 2200 mm
Noise
<70 dB
Max QTY In Container
8 pcs (20'') & 16 pcs (40'')
Resources
Docs & media
📄
User manual
Installation, operation and maintenance documentation for the BD18.
Request manual from export team →▶
Product video
See the BD18 in operation.
⏳ Video coming soonFeatures
What sets it apart
01

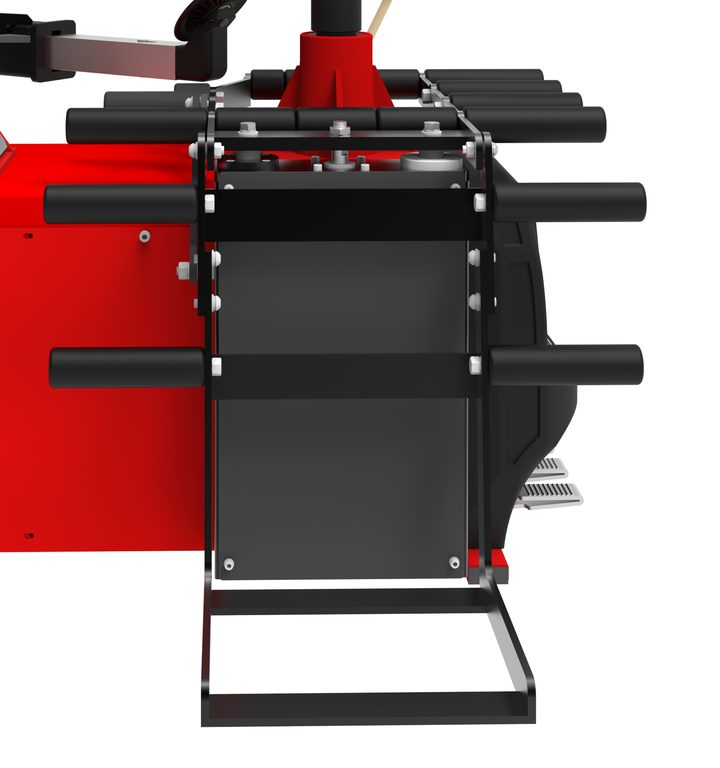

Dual-tray design
Separate pressure/support plates for efficient tire and wheel hub replacement.
02

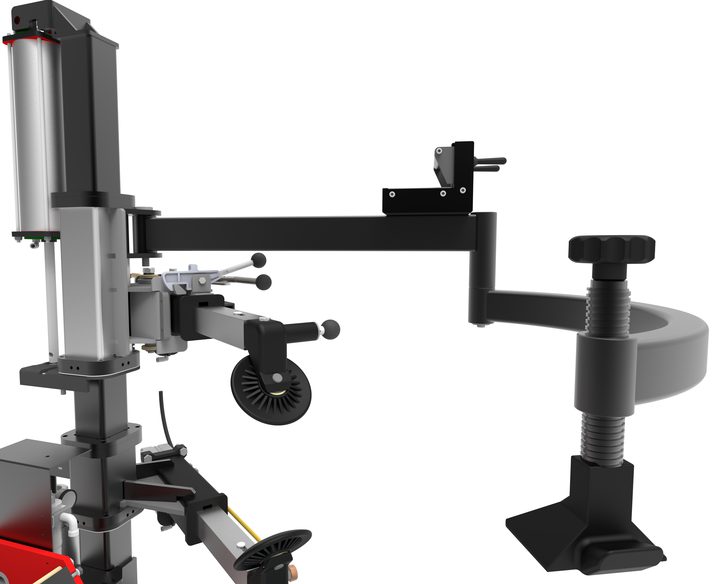

Innovative auxiliary arm technology
Patented auxiliary arm improves efficiency and structural strength.
03
High-performance integrated motor
Adjusts output in real time based on load; improves energy efficiency and reduces power consumption.
In the crate
Accessories
Standard
Tire PresserPlastic CrowbarCaliper
