Tire Changers · Tilt-Back
C233GB/GC
Tilt-Back Tire Changer
Applicable outer clamping 10"-21" / 11"-24"(GC)Applicable inside clamping 12"-24" / 13"-26"(GC)Max. wheel width 315mm / 350mm(GC)Max. wheel diameter 960mm / 1080mm(GC)
Specifications
C233GB/GC specs
Applicable outer clamping
10"-21" / 11"-24"(GC)
Applicable inside clamping
12"-24" / 13"-26"(GC)
Max. wheel width
315mm / 350mm(GC)
Max. wheel diameter
960mm / 1080mm(GC)
Working air pressure
8-10bar

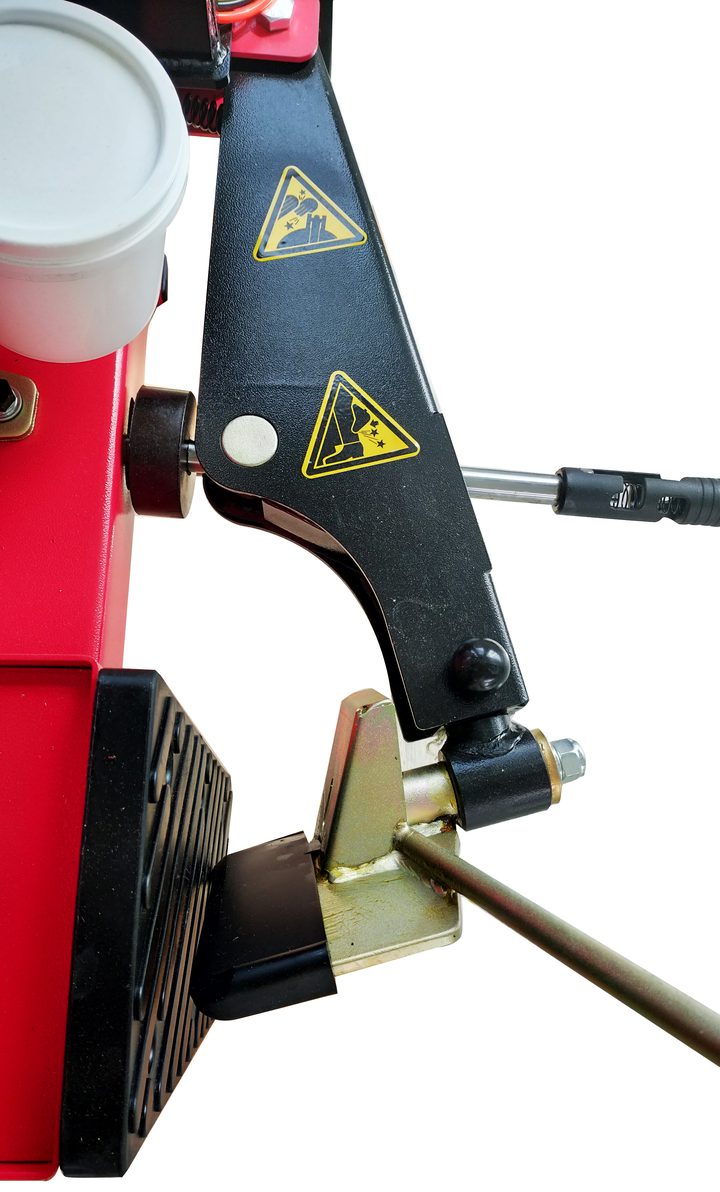

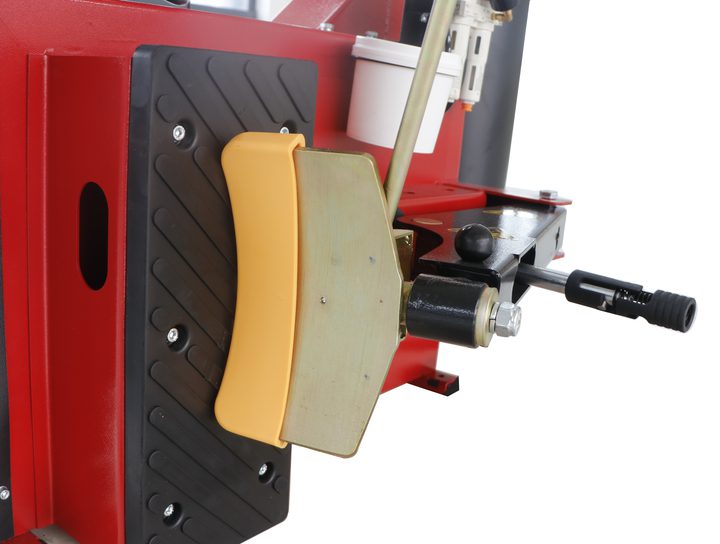

Tire-pressed shovel force
2000-2500kgf
Optional volt
110V/220V
N./G. Weight
228/253kg, 233/258kg(GC)
Packing DIM
9707701000mm, 11508001000mm(GC)
Resources
Docs & media
📄
User manual
Installation, operation and maintenance documentation for the C233GB/GC.
Request manual from export team →▶
Product video
See the C233GB/GC in operation.
⏳ Video coming soonFeatures
What sets it apart
01

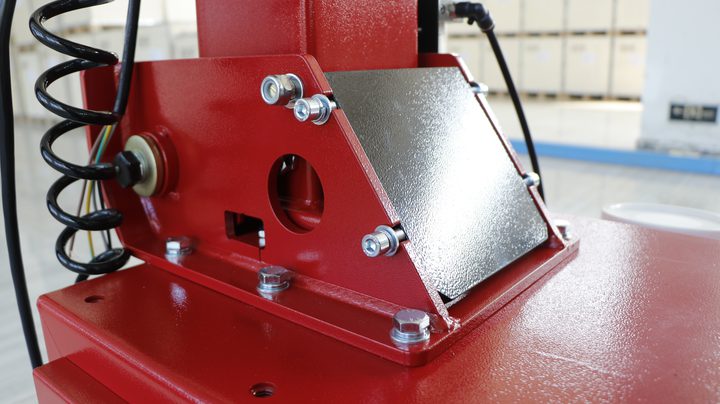

TiltBack design.
02
2000-2500kgf aluminum alloy tire press cylinder.
03

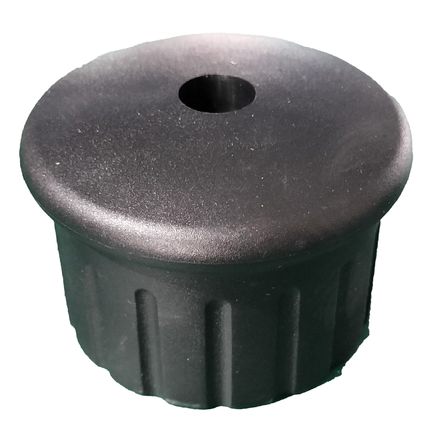

New hexagonal press rod sheath adjusts for misalignment.
04

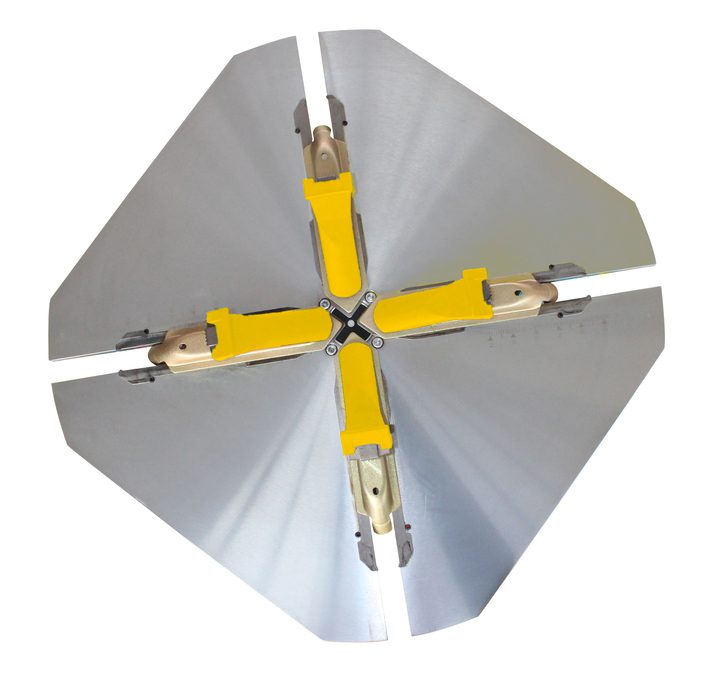

High Precision Large Turntable serve up to 24 inch rim.
05
Hexagonal bar adopts pneumatic locking, easy to operate.
Quote the C233GB/GC for your market.
Send your country and quantity — our export team replies with pricing, lead time and container loading.
